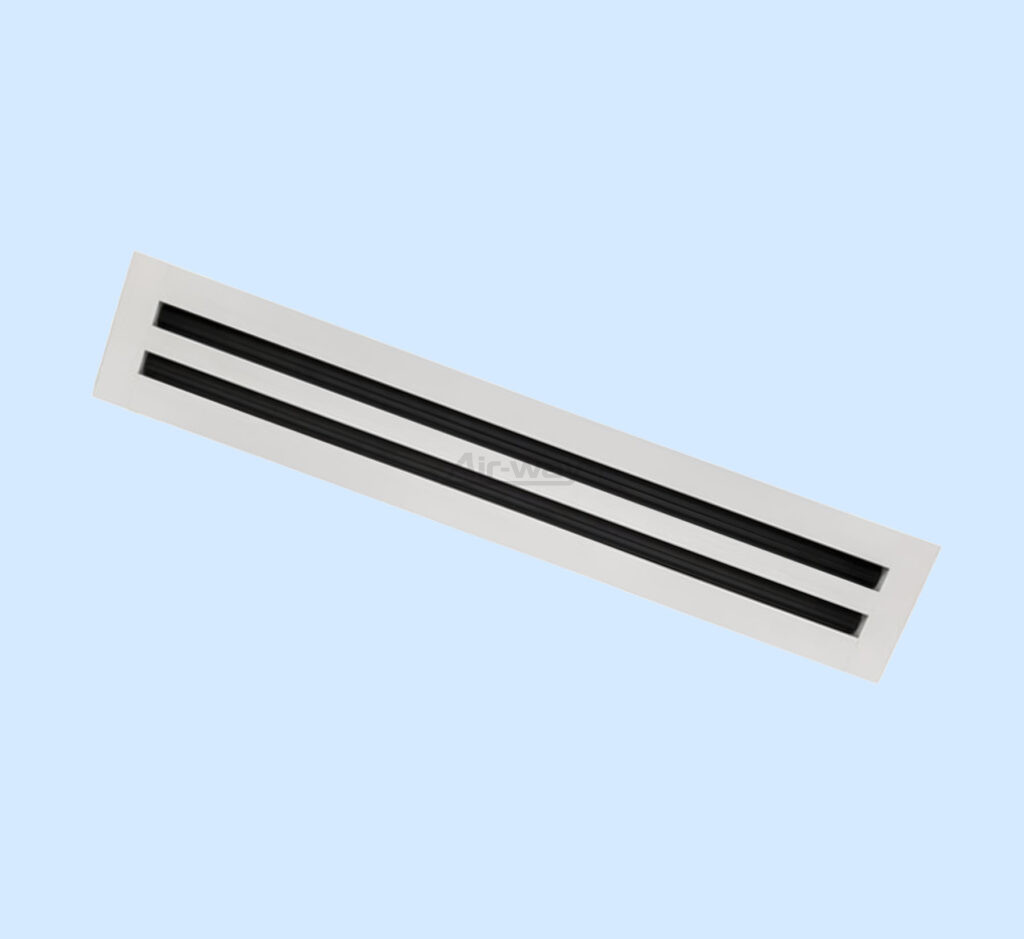

Linear Slot Diffuser
Slim architectural slot diffuser with 1 to 6 slots and adjustable air pattern controllers. Supplied with or without plenum box for continuous ceiling runs.
| Construction | Extruded aluminium slot frame |
| Slot width | 20 mm standard; 16 mm and 25 mm optional |
| No. of slots | 1 to 6 slots |
| Plenum | Optional GI plenum, insulated if required |
| Finish | White / black / custom RAL powder coat |
| Size basis | Length x slot neck width in mm |
Performance Data
Technical Specifications
| Model | Size (mm) | Material Type | Paint Type |
|---|---|---|---|
| AW-LSD-1S-1000 | 1000 x 34 | 1050 x 75 | 72-432 per m |
| AW-LSD-2S-1000 | 1000 x 65 | 1050 x 106 | 144-864 per m |
| AW-LSD-3S-1500 | 1500 x 96 | 1550 x 137 | 216-1296 per m |
| AW-LSD-4S-1500 | 1500 x 128 | 1550 x 170 | 288-1728 per m |
| AW-LSD-6S-2000 | 2000 x 190 | 2050 x 232 | 432-2592 per m |
* Values are nominal and subject to manufacturing tolerances. Consult Air-Way technical support for project-specific sizing, finishes or performance data.
Where It’s Used
Key Applications
A linear slot diffuser provides a minimal ceiling line while allowing horizontal or vertical air discharge. It is commonly supplied with a plenum box and side or top spigot.
Offices
Hotels
Retail stores
Luxury villas
False ceilings
