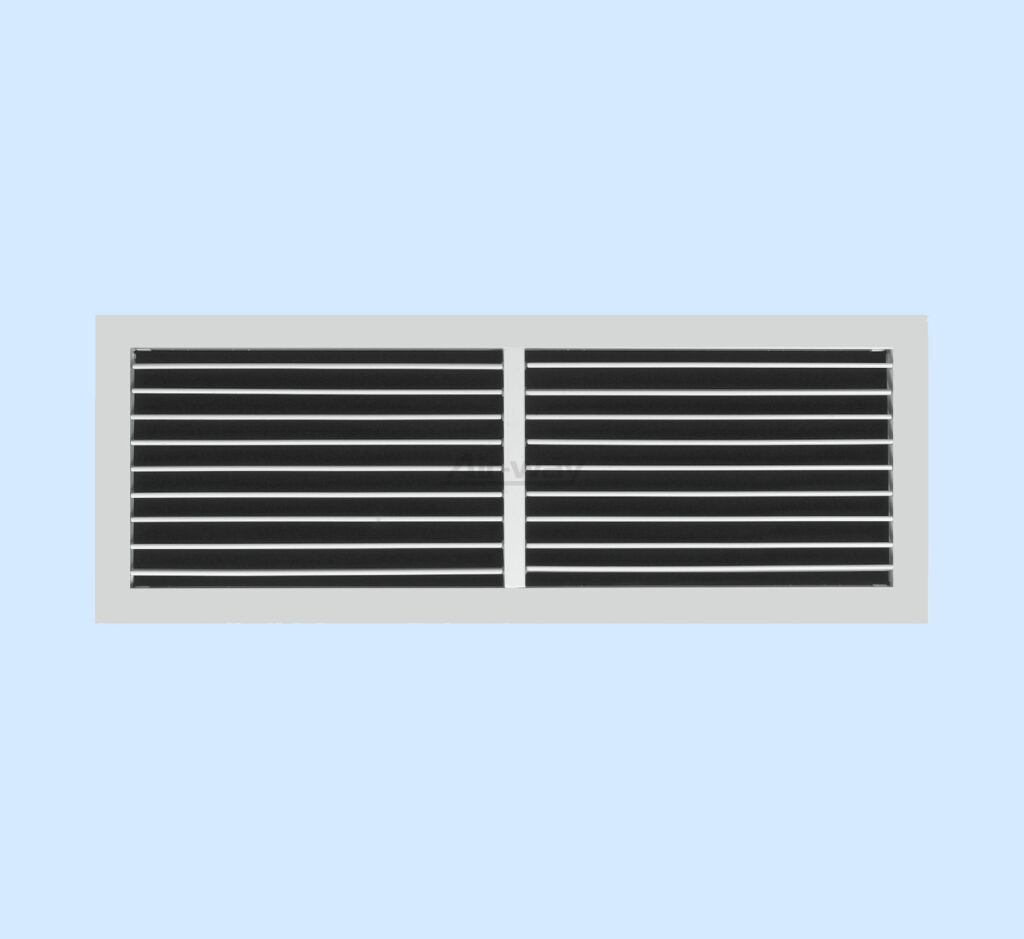

Grilles & Registers
Supply and return grilles and registers with single deflection, double deflection, egg-crate or perforated face options. Available with opposed blade damper for airflow balancing.
| Construction | Extruded aluminium frame and blades |
| Blade angle | 0°, 15° or adjustable deflection |
| Damper | Optional opposed blade damper |
| Core | Fixed, removable, egg-crate or perforated |
| Finish | Powder coated / anodized / mill finish |
| Size basis | Listed duct size; neck normally 10 mm less |
Technical Specifications
| Model | Size (mm) | Material Type | Paint Type |
|---|---|---|---|
| AW-GR-200x100 | 190 x 90 | 250 x 150 | 80-250 |
| AW-GR-300x150 | 290 x 140 | 350 x 200 | 180-550 |
| AW-GR-450x200 | 440 x 190 | 500 x 250 | 350-1100 |
| AW-GR-600x300 | 590 x 290 | 650 x 350 | 700-2200 |
| AW-GR-900x300 | 890 x 290 | 950 x 350 | 1200-3500 |
| AW-GR-1200x400 | 1190 x 390 | 1250 x 450 | 2200-6500 |
* Values are nominal and subject to manufacturing tolerances. Consult Air-Way technical support for project-specific sizing, finishes or performance data.
Supply and return grilles and registers with single deflection, double deflection, egg-crate or perforated face options. Available with opposed blade damper for airflow balancing.
Key Applications
A complete grille and register range for wall, ceiling and duct openings. Standard models can be used for supply, return and exhaust applications with matching dampers where balancing is required.
